DROP AMPLIFIERS

Taikan's series of Drop Amplifiers address the needs of CATV operators. A rugged housing, excellent RF performance and dual mounting tabs make this product line the best choice for MSO’s. This series is designed for easy installation as well as reliable, long-term service.



active return drop amplifiers


  • Nickel Plated Brass
    F-Connectors

  • Waterproof Gasket

  • 6 kV Ring Wave Surge Protected

  • Regional Power Adapter Included

  • LED Power Indicator

  • 54/70/85/105-1002 MHz Forward (Downstream) Path Options

  • 5-42/55/65/85 MHz Return (Upstream) Path Options

  • 10 or 15 dB Forward (Downstream) Gain

  • 10 dB Return (Upstream) Gain

  • Tongue and Groove Housing



passive return drop amplifiers

M-AMP-15  passive return drop amplifier for CATV RF broadband cable services at the premise manufactured by taikan scte
  • 54/70/85/105-1002 MHz Forward (Downstream)
    Path Options

  • 10 or 15 dB Forward (Downstream) Gain

  • Epoxy Sealed Back

  • Tongue and Groove Housing

  • Waterproof Gasket

  • 6 kV Ring Wave Surge Protection

  • LED Voltage Indicator

  • Nickel Plated Brass Connectors

  • Regional Power Adapter Included

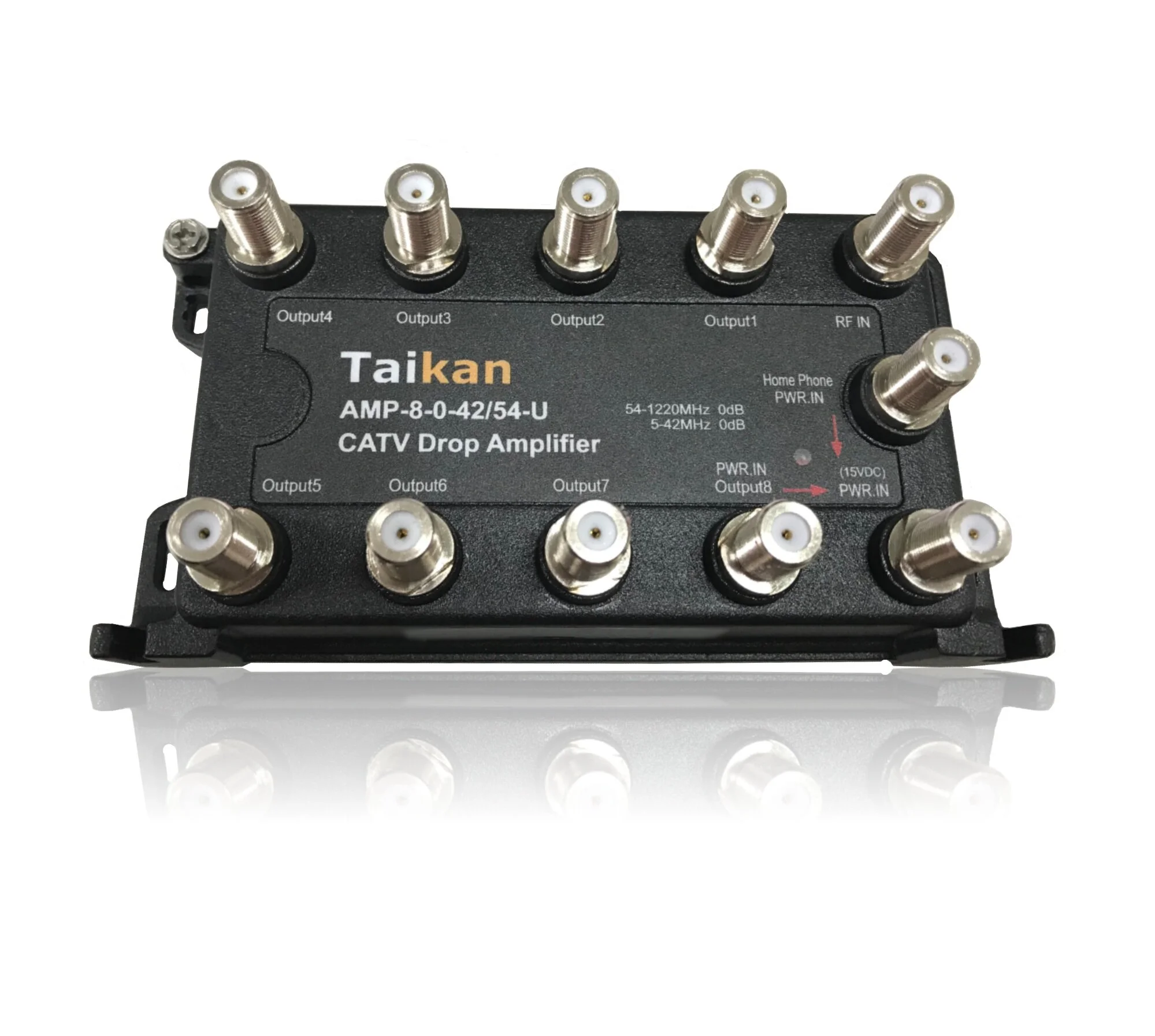

4 & 8 RF port, with PHONE PORT Unity gain drop amplifiers

8 Port Drop Amp Reflection.png
  • 54/85-1218 MHz Forward (Downstream) Path Options

  • Upstream & Downstream Unity Gain

  • LED Power Indicator, Power Adapter Included

  • 6kV Surge Withstand

  • SCTE Compliant F Ports

  • 15 PSI Pressure Tested

DROP AMPLIFIER POWER INSERTER

Drop Amplifier Power Inserter
  • 5-1675 MHz Bandwidth

  • Low Intermodulation and Protection Against Spikes

  • Superior Isolation and Return Loss for Return Path

  • Surge withstand Cat. B3 6kV 3000 A Combo Wave

  • Shielding Effectiveness of > 100 dB

  • Rated Voltage 24 VDC, Current Amp 1 A



MDU Amplifier

Taikan’s AE series of MDU Amplifiers has been specifically designed for use in multi dwelling environments such as hospitals, apartment complexes, and hotels. This high gain unit has a bandwidth range that goes up to 1.2 GHz, allowing effective transmission of large volumes of data within the CATV network. The built-in equalizer and attenuator (gain/tilt) allow for increased flexibility and easy adjustment of the signal output. The unit includes a European (65/85 MHz with 220 V) or US (42/54 MHz with 110 V) power adapter.

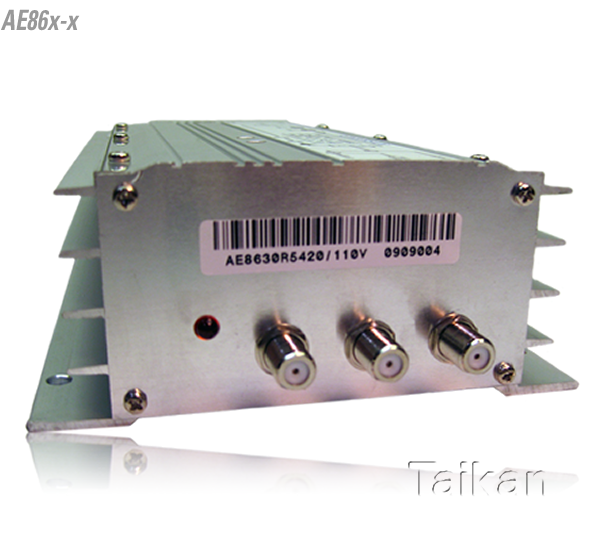

860 mhz MDU Amplifier

  • Extremely Low Distortion

  • Suitable for Apartment Distribution Systems

  • Forward (Downstream) Frequency: 54-860MHz

  • Return (Upstream) Frequency: 5-42 MHz

  • Forward (Downstream) Gain: 30 or 40 dB & Tilt Adjuster

  • Return (Upstream) Gain: 20 dB




1 GHz MDU Amplifier

  • Extremely Low Distortion

  • Suitable for Apartment Distribution Systems

  • Forward (Downstream) Frequency: 54-1000 MHz

  • Return (Upstream) Frequency: 5-42 MHz

  • Forward (Downstream) Gain: 30 or 40 dB & Tilt Adjuster

  • Return (Upstream) Gain: 20 dB





1.2 GHz MDU Amplifier

  • 5-1218 MHz Bandwidth Range

  • Forward Gain of 32 dB and Return Gain of 23 dB

  • Modular Design with Detachable Amplifier and Power Supply

  • One 110 dBuV Output Port

  • 1.2 GHz Frequency Amplifier Platform with SMT Technology

  • 1.2 GHz GaAs Double Power Amplifier Module Offers High Linearity and Fidelity

  • Rugged Outdoor Aluminum Alloy Die-cast Housing Offers Excellent Water Resistance and Electromagnetic Shielding Performance

  • Transistor Surge Arrester Resists Lightning and Surge Voltages
