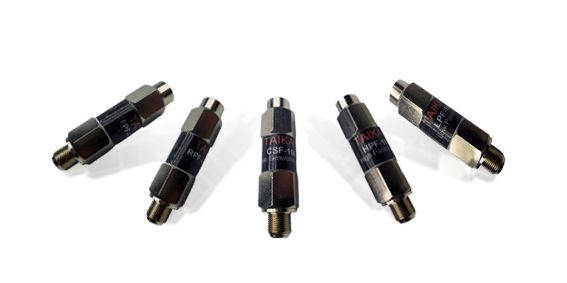

Filters taikan for cable network infrastructure


Filters

Taikan’s high performance Filters demonstrate minimal loss within the passband, while attenuating the signals with frequencies lower than the cutoff frequency. They operate as a stand-alone unit, and require no external components or adjustments.



lightning square button.jpg

electrical & safety features

  • 860/1000/1218 MHz Bandwidths Available

  • Surge: 6kV per SCTE IPS-TP-210

  • Low Harmonic Distortion

  • Shielding Effectiveness >120 dB



housing & Mechanical design

  • Compact and Light Weight Design

  • Waterproof O-Ring

  • Dimensions: 39 x 11 mm (LxH)

  • Male / Female F connector 3/8-32 UNEF-2

  • Operating Temperature: -10 °C to +60 °C


Options square button.jpg

optional features

  • Variety of dB Values Available for Attenuator Filters

  • Various Frequency Splits Available



Specifications




Product photo Gallery
